Commercial AC EV Charger

This type of charger is usually installed at the company parking areas to provide service and facility for the staff and customers. Output power range can vary from 7kw to 22kw which affects the time required to charge. Type 2 cable and 32A type plug is used. This type of charger is installed on the ground and can be equipped with a payment charging system.


Features of Jayuan Commercial AC EV Charger

  • For Commercial, and more

  • Design Customizable

  • Optional wired or wireless Management

  • Optional Card User Management

  • Interface: J1772, IEC62196-2, TYPE2


Specification of Commercial AC EV Charger

Model22KW AC EV Charger44KW AC EV Charger
Input/Output Voltage3 Phase: 3P+N+PE; 400 VAC ± 10%
Output AC Current3 Phase 32A(2SETS)3 Phase 63A (2SETS)
Frequency50Hz/60Hz
RegulationIEC 61851-1: 2017, IEC61851-21-2

Charging Plug/Socket

(Socket Protection Lock System)

IEC 62196-2:2016  DIN 70121 or ISO 15118

Type 2 Plug,Type 2 Socket(Shutter Optional)

IEC 62196-2:2016

Type 2 Plug

Thermal ProtectionYES
IP DegreesIP54
Storage Temperature-60℃ ~ 70℃
Operating Temperature-60℃ ~ 70℃
CommunicationsLAN (basic)/4G or Wi-Fi (optional)
Backend CommunicationOCPP 1.6 JSON/SOAP

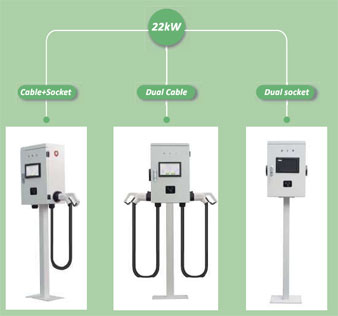

Details of Jayuan Commercial AC EV Charger

  • Support Standard of Commercial AC EV Charger Support Standard of Commercial AC EV Charger

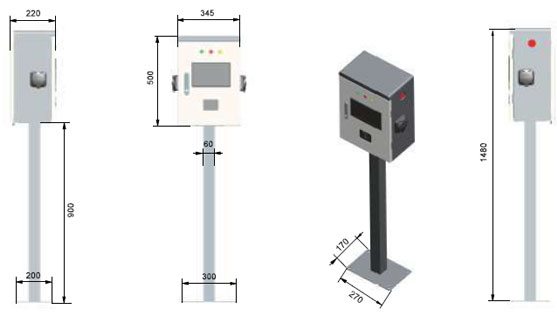

  • Dimension And View of Commercial AC EV Charger Dimension And View of Commercial AC EV Charger
