  • Stationary Charging station (120-150KW)

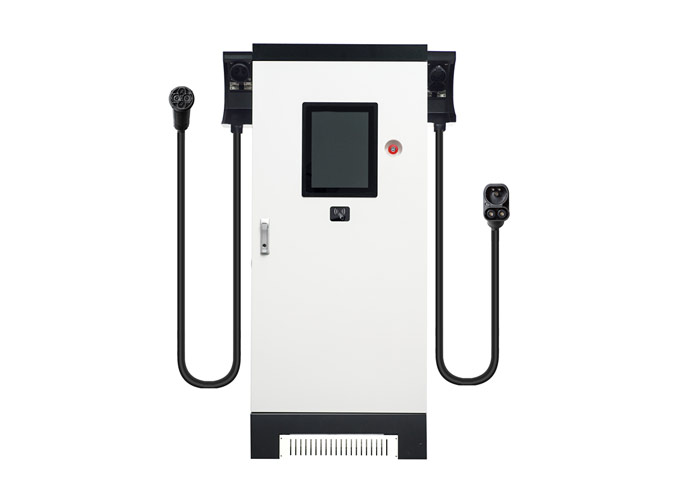

Stationary Charging station (120-150KW)

Recent advance technology EV vehicles are equipped with higher capacity batteries and therefore can be compatible to charge by using high output power charging stations. These charging stations are usually installed in commercial areas, restaurants parking areas, service areas on the highways. Charging time is greatly reduced to only 18 minutes. The main advantage of this charging station is that it can be equipped with dual outlets which enable it to charge 2 vehicles at the same time. However old models of EV vehicles are not suitable to charge using this charging station.

Features of Jayuan Stationary Charging station (120-150KW)

  • Fast charging CCS,CHAdeMO and GB/T 0%~80% within 18 minutes

  • Emergency Stop Button

  • Optional OCPP 1.6

  • Optional 4G, WIFI, LAN

  • Optional Card Management

  • Touching Display

Specification of Stationary Charging station (120-150KW)

ModelMulti-Standards DC Quick Charger
AC InputInput Rating400VAC ± 15%, 480VAC ± 15%
AC Input Connection3P+N+PE (Wye configuration)
Max.Input PowerSingle DC plug 150KVASingle DC plug 200KVA
AC 43KVA (optional)
AC+DC serve at the same time: 43KVA+150/200KVA=193/243 KVA
Efficiency>95% at a nominal output power
DC OutputOutput Voltage Range50~500VDC (CHAdeMO),150~750VDC (CCS), 48~1000VDC (GB/T)
Max.Output CurrentSingle plug: 240A/300A-500V, 160A/200A-750V, 120A/150A-1000V
Max.Output Power120KW150KW
User InterfaceDisplay7'or15' TFT-LCD touchable screen (Android or Win CE), 15' optional)
Emergency Stop ControlPress emergency stop button isolation between input and output manual release switch
User AuthenticationRFID
Display InformationCharging process and status/Alarm and warning messages
CommunicationExternal3/4G, WiFi and Ethernet
Standby DC Source120W * 4
Electrical IsolationIsolation between input and output
CoolingForced Air
Input ProtectionOVP, OCP, OPP, OTP, UVP, residual current detection, surge protect cabinet-open detection
Output Protectionshort circuit protection, OCP, OVP, LVP, OTP, residual current detection
IP LevelIP54
Net Weight260kg280kg

Details Of Stationary Charging station (120-150KW)

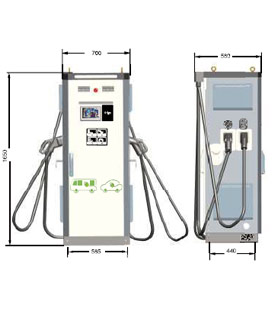

  • Dimension And View of Stationary Charging station (120-150KW) Dimension And View of Stationary Charging station (120-150KW)
