  • Portable DC EV Charger

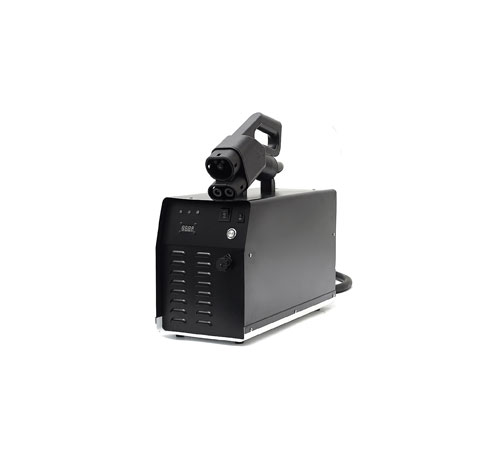

Portable DC EV Charger

The portable charge provides the most simple and easy solution for EV charging. It's equipped with a charging plug and a common socket as the other end which can be connected with any power source at home or in office areas. By keeping the portable charger in the vehicle ensures you're always equipped to charge at any available power source. The most widely application of this product is to be used as portable solar fast charger for electric car. Options available are with 16A as well as 32A type with an output power of 7Kw.

Features of Jayuan Portable DC EV Charger

  • Optional Touching Display

  • Firmware USB Update

  • CCS GB/T and CHAdeMO support

  • Optional RJ45 port Internet Connection

Specification of Portable DC EV Charger

AC InputInput Rating220VAC ± 10%380VAC  ± 15%
AC Input ConnectionL2, L3+PE (NEMA)3P+N+PE, Wye connection
Max. Input Current100A50A70A
DC OutputOutput Voltage Range50~500VDC (CHAdeMo), 150~750VDC (CCS), 48~450VDC (GB/T),1000V (optional)
Max. Output Power21KW30KW45KW
Max. Output Current60A-350V75-400V90A-500V
User InterfaceTFT-LCD Touch Panel4.3' touch display
Push ButtonsEmergency Stop
InterfaceUSB, RJ45
EnvironmentalOperating Temperature-20℃~50℃, power derating from 50℃ and above
Humidity5%~90% RH, non-condensing
IP LevelIP23/IK10
MechanicalCable Length5m (CHAdeMo), 5m (CCS), 5m (GB/T) Customize Accept
CertificationCE, ROHS
Charging ProtocolCHAdeMO 2.0/DIN 70121/ISO15118/IEC61851-23, IEC61851-24

Details of Jayuan Portable DC EV Charger

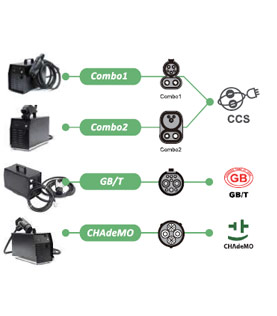

  • Support Standard of Portable DC EV Charger Support Standard of Portable DC EV Charger
