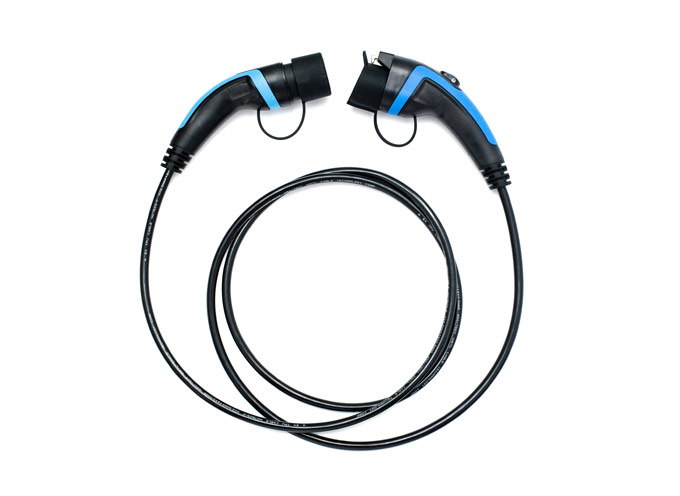

Type2-Type1 EV Charging Cable

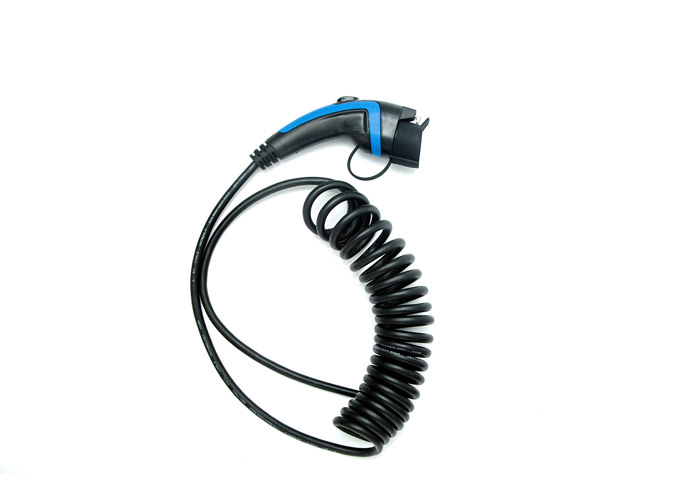

The cable conforms to IEC & SAE Standard (EU & USA) of EV Charging, suits Electric Vehicles manufactured in European Countries and America. The Type 1 end (with sheath) connect to the EV while The Type 2 end connects to the Charging Station. The other option is Cable Spiral Type, it saves more space when stocking, nice solution for charging.

Features of Jayuan Type2-Type1 EV Charging Cable

  • Matching IEC 62196-2 2010 and SAE J1772 2010.

  • Ergonomic Design.

  • Convenient Connector.

  • Advanced Craft shows a Nice Appearance.

  • Longer Lifespan and Better Bending thanks to XLPO & TPU Material.

  • IP65 for Plug.



Specifications of Type2-Type1 EV Charging Cable

ElectricalEnvironmentMaterialsMechanical
Insulation Resistance:>1000MΩ (DC500V)Operating Temperature:-30℃~50℃Shell (Thermoplastic):

UL94-VO

Flame Retardent

Life:no-load plug>10000times
Pins Temperature Rise:<50KWaterproof IP Grade:IP66/IP55Pin:Copper Alloy, Silver PlatedExternal Force:1meters Drop and 2tons vehicle run over pressure affordable.
Withstand Voltage:2500V////Insertion Force:<100N
Contact Impedance:0.5mΩMax//////
