Specification of Jayuan Stationary Charging Station (60KW)
| Item | 120KW | 150KW | |
| Model | Multi-Standards DC Quick Charger | ||
| AC Input | Input Rating | 400VAC ± 15%, 480VAC ± 15% | |
| AC Input Connection | 3P+N+PE(Wye configuration) | ||
| Max.Input Power | Single DC plug 150KVA | Single DC plug 200KVA | |
| AC 43KVA(optional) | |||
| AC+DC serve at the same time: 43KVA+150/200KVA=193/243 KVA | |||
| Frequency | 50/60Hz | ||
| Efficiency | >95% at a nominal output power | ||
| DC Output | Output Voltage Range | 50~500VDC(CHAdeMO),150~750VDC(CCS),48~1000VDC(GB/T) | |
| Max.Output Current | Single plug: 240A/300A-500V,160A/200A-750V,120A/150A-1000V | ||
| Max.Output Power | 120KW | 150KW | |
| User Interface | Display | 7'or15' TFT-LCD touchable screen(Android or Win CE), 15' optional) | |
| Emergency Stop Control | Press emergency stop button isolation between input and output manual release switch | ||
| User Authentication | RFID | ||
| Display Information | Charging process and status/Alarm and warning messages | ||
| Communication | External | 3/4G, WiFi and Ethernet | |
| Internal | CANBus/RS485/RS232 | ||
| Outline | Dimension | 1650*700*580mm | |
| Standby DC Source | 120W * 4 | ||
| Electrical Isolation | Isolation between input and output | ||
| Cooling | Forced Air | ||
| Input Protection | OVP, OCP, OPP, OTP, UVP, residual current detection, surge protect cabinet-open detection | ||
| Output Protection | short circuit protection, OCP, OVP, LVP, OTP, residual current detection | ||
| Noise | 55dB | ||
| IP Level | IP54 | ||
| Net Weight | 260kg | 280kg | |
Details Of Jayuan Stationary Charging Station (60KW)
-

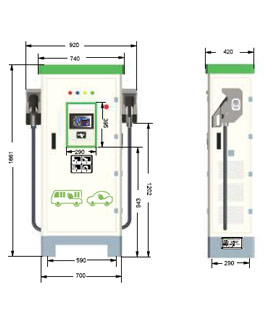

Dimension And View of Stationary Charging Station (60KW)
