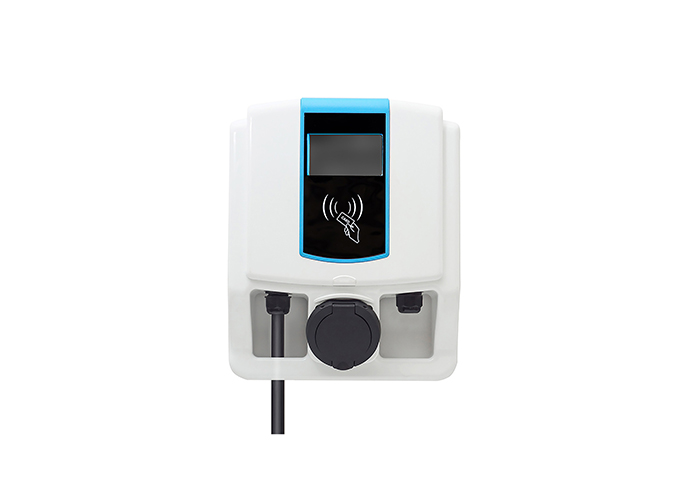

Home AC EV Charger

AC EV Charger for home is the most common and widely used charger around the world. This charger is equipped with an AC plug and only requires a normal electric power connection to be used at home. The input current is 32A and the output power for the commonly used charger is 7kw. One of the main advantages of this charger is that it's easy to install and usually can be installed by wall mounted method.

Features of Jayuan Home AC EV Charger :

For Home. and more
Optional 7KW or 22KW
Optional Touching Display
Optional Internet Management
Optional Card User Management

Free Quote

Specification of Jayuan Home AC EV Charger

Model	CHR 7/22 (SOCKET)	CHR 7/22 (NO DISPLAY)
Rated Input Voltage	230 VAC/Single Phase, 380 VAC/3 Phase	240 VAC, 1-Phase (AC Level 2)
Output AC Current	32A
Frequency	50Hz/60Hz
Output Cable Length	2 ~ 5 meters
Regulation	IEC 61851-1:2017, IEC61851-21-2	CCID 20
Charging Plug/Socket	IEC 62196-2:2016 Type 2 Plug, Type 2 Socket (Shutter Optional)	SAEJ1772 Type 1 Plug/Socket
Thermal Protection	YES
IP Degrees	IP55
Storage Temperature	-40℃ ~ 70℃
Operating Temperature	-20℃ ~ 50℃
Communications	LAN (basic)/4G or Wi-Fi (optional)
Backend Communication	OCPP 1.6 JSON/SOAP

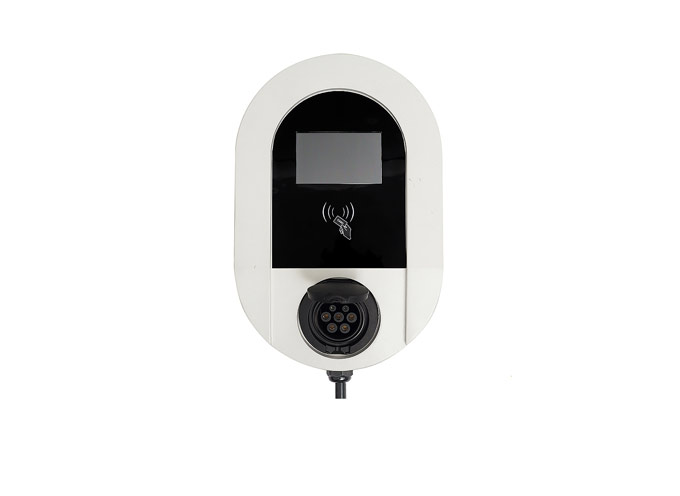

Details Of Jayuan Home AC EV Charger

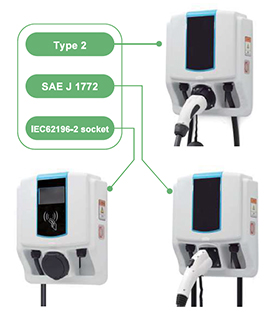

Support Standard of Home AC EV Charger
Dimension And View of Home AC EV Charger

How To Choose A Home AC EV Charger

What Kind Of Charging Speed You Like?

It can be selected by the range of your EV (less or more), your driving style (always drive at top speed or not), and your commute (long or short).
Why You Want To Get A Home EV Charger?

The charging station site is too far from your living area.

When getting off work, you have to wait in lines for other people to charge first.

The existing charger can not provide fast charging speed anymore.
Where To Put Your Home EV Charger?

Install the home EV charger closing to your garage door, parking slot of your own would be easier to charge multiple cars.
Is Your EV Charger Safety And Reliability ?

Make sure the charger supports your EV and keep an eye on its warranty.
