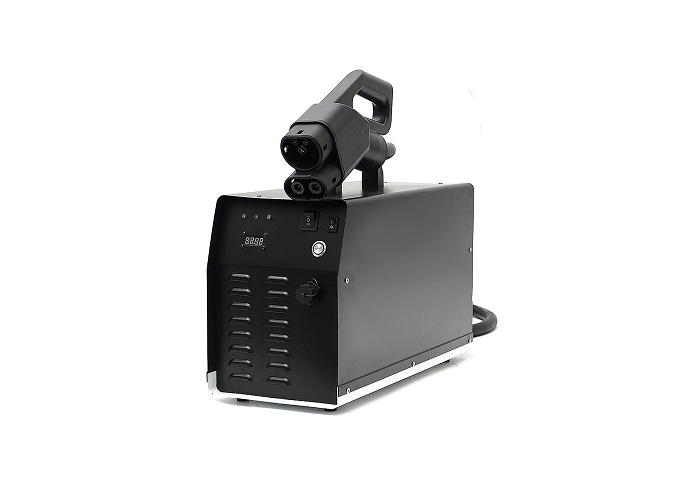

Mobile DC EV Charger

These chargers are greatly useful for auto manufacturers, event organizers as well as for travelling fleets and to provide services in remote areas where vehicles may run out of power and need emergency charging. These chargers are equipped with a DC plug and due to 22Kw or higher power can charge the vehicle in a short time. Due to its compact size, the charger is easy to handle and transport.

Features of Jayuan Mobile DC EV Charger

  • Firmware USB Update

  • Optional RJ45 port Internet Connection

  • CCS GB/T and CHAdeMO Cable replacing support

  • Power Module easy replacing thanks to Open Door Design

Specification of Jayuan Mobile DC EV Charger

AC InputInput Rating110VAC ± 15%220VAC  ± 15%
AC Input ConnectionL2, L3+PE(NEMA, JPS), L+N+PE
Max. Input Current70A32A
DC OutputOutput Voltage Range50~500VDC(CHAdeMo), 200~750VDC(CCS),150~450VDC(GB/T)
Max. Output Power3.5KW7KW
Max. Output Current10A-350V, 4.5A-750V20A-350V, 9A-750V
User InterfaceTFT-LCD Touch PanelLED
Push ButtonsStart/Stop
EnvironmentalOperating Temperature-20℃~50℃, power derating from 50℃ and above
Humidity5%~90% RH,non-condensing
IP LevelIP23
MechanicalCable Length4m(CHAdeMo), 4m(CCS), 4m(GB/T) Customize Accept
CertificationCE, ROHS
Charging ProtocolCHAdeMO 2.0/DIN 70121

Details of Jayuan Mobile DC EV Charger

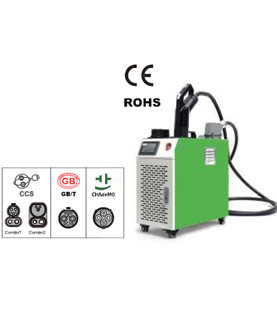

  • Support Standard of Mobile DC EV Charger Support Standard of Mobile DC EV Charger

Interested In JAYUAN EV Charging Products?

Please contact us for details
