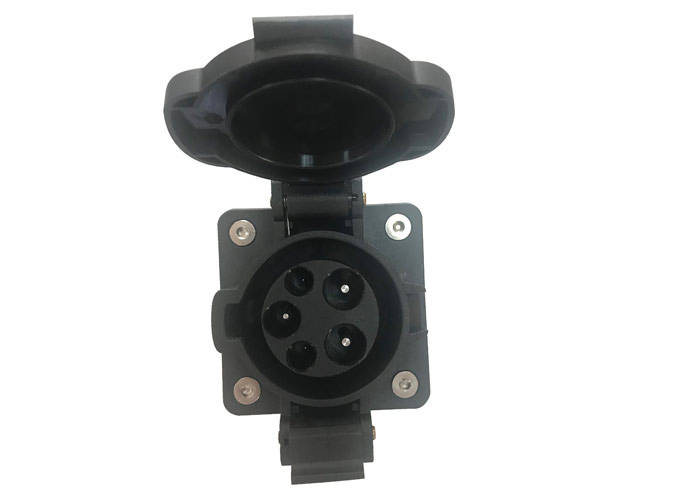

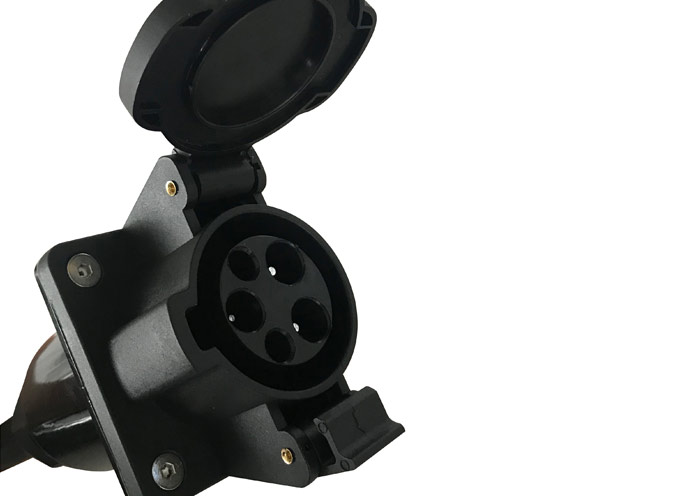

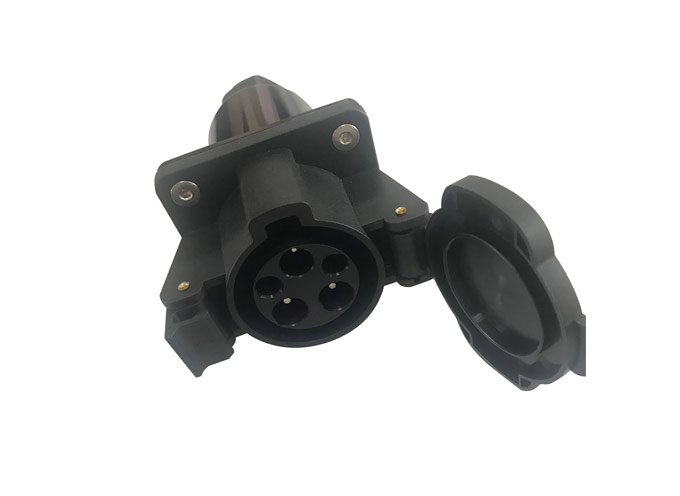

Features of Jayuan SAE EV Charging Socket
IP55 Working Grade.
Fits American Standard SAE J1772-2012.
Optional Installing of Prevention Cap (Left, Right, Front).
Oil Proof, Pressure Proof, Impact Resistant, flame retardant, Wear-resisting.
Specifications of SAE EV Charging Socket
| Electrical | Environment | Materials | Mechanical | ||||
| Insulation Resistance: | >1000MΩ (DC500V) | Operating Temperature: | -30℃~50℃ | Shell (Thermoplastic): | UL94-VO Flame Retardent | Life: | no-load plug>10000times |
| Pins Temperature Rise: | <50K | Waterproof IP Grade: | IP55 | Contact Pin: | Copper Alloy, Silver/Nickel Plated | External Force: | 1meters Drop and 2tons vehicle run over pressure affordable. |
| Withstand Voltage: | 2500V | / | / | / | / | Insertion Force: | <100N |
| Contact Impedance: | 0.5mΩMax | / | / | / | / | Sealing Gasket: | (Silicon) Rubber |
| Rated Current: | 16A/32A/40A/50A | / | / | / | / | / | / |
| Rated Voltage: | 240V | / | / | / | / | / | / |
