- Specification
- IV-Curves
Specification Of DC Solar Pump
Voltage | Best DC Voltage | Power | Max.Flow | Max.Head | Outlet | Cable | Solar Panel | |
Open Voltage | Power | |||||||
24V | 30V-48V | 300W | 4m³/h | 35m | 1.25'’ | 2m | <50V | ≥500W |

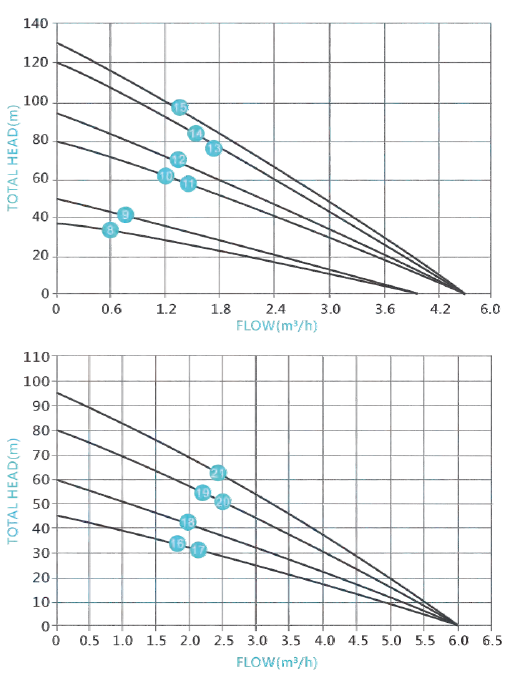

IV-Curves Of DC Solar Pump

Call Me:
+86-0571-6381-4088E-mail:
rfq@jayuansolution.com

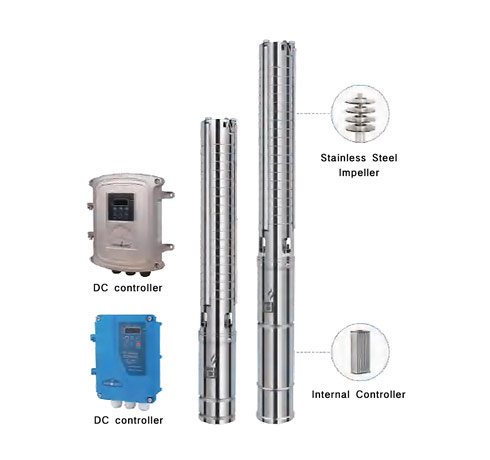

DC Solar pump is a highly efficient product and overall the best type of solar pumps in case of higher efficiency. At the same time, it doesn't require investors to operate. DC powered pumps use direct current from a solar panel and at the same time storage battery can also be used. The cost of this product is higher as compared to AC pumps but overall greater efficiency makes up for it.
with high efficiency permanent magnetic motor, efficiency improved 15%~30%.
Environmental protection, clean energy, can be powered by both solar panel and battery.
Over-load protection, under-load protection, lock-rotor protection, thermal protection.
With MPPT function.
Much longer lifespan than the normal AC water pump.
Voltage | Best DC Voltage | Power | Max.Flow | Max.Head | Outlet | Cable | Solar Panel | |
Open Voltage | Power | |||||||
24V | 30V-48V | 300W | 4m³/h | 35m | 1.25'’ | 2m | <50V | ≥500W |
