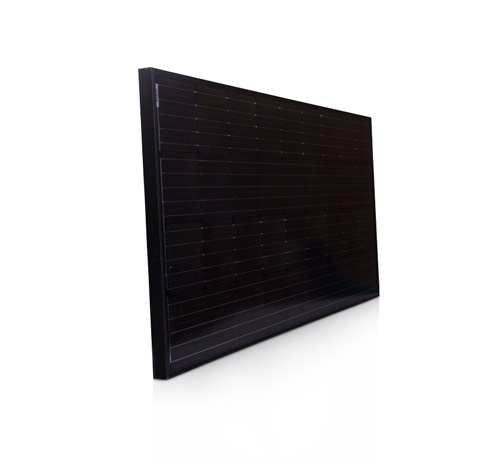

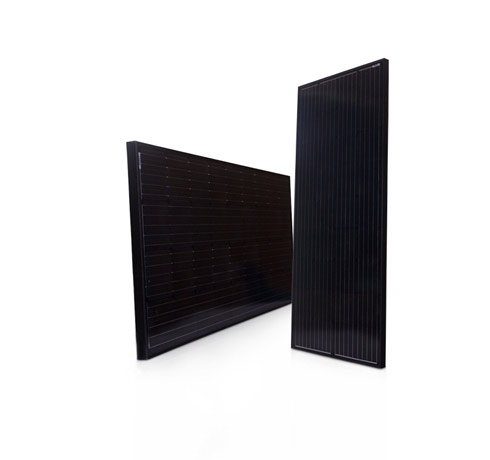

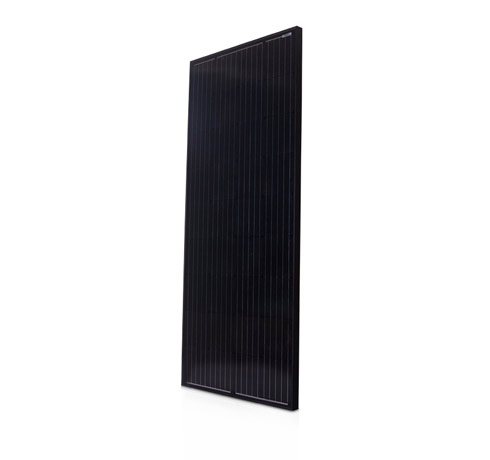

JAYUAN Mono Solar Panel 180w

JAYUAN Mono solar panel 180w is composed of mono solar cells with high conversion efficiency in different series and parallel array modes which results in a nice efficiency and don't require a much bigger size of the panel to get higher efficiency. The photoelectric conversion efficiency of the mono solar cell is about 18%, while the highest reaches 24%. As to manufacture cost, mono is higher, for its long service life and ordered arrangement of the insider atoms. For the residential areas and on grids often monotype is preferred due to the great efficiency of the product.

Free Quote PDF Download

Electrical Characteristics
Mechanical Characteristics

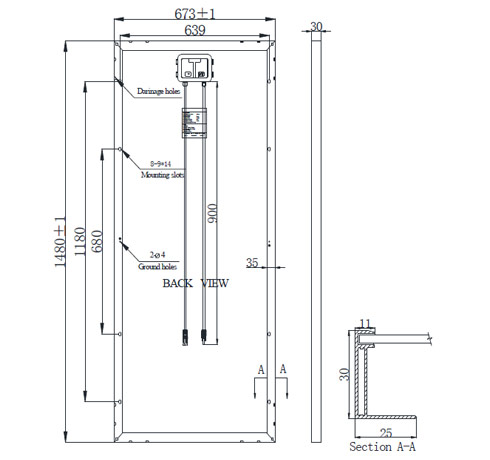

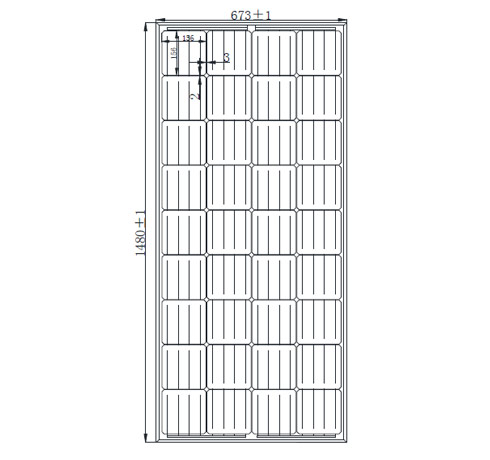

Engineering Drawings

Electrical Characteristics Of JAYUAN Mono Solar Panel 180w

Maximum Power at STC(Pmax)	160W
Optimum Operating Voltage (Vmp)	18.23V
Optimum Operating Current (Imp)	8.777A
Open-Circuit Voltage (Voc)	22.48V
Short-Circuit Current (Isc)	9.49A
Solar Cell Efficiency (%)	18.6
Solar Module Efficiency (%)	16.06
Operating Temperature	-40 to 85℃
Maximum System Voltage	DC1000
Maximum Series Fuse Rating	15A
Power Tolerance	0~+3%
STC: Irradiance 1000W/㎡, Modules Temperature 25℃, AM=1.5

Temperature Coefficient And Mechanical Characteristics Of JAYUAN Mono Solar Panel 180w

Nominal Operating Cell Temperature (NOCT)	47℃+/-2℃
Temperature Coefficient of Pmax	-0.47%/℃
Temperature Coefficient of VOC	-0.346%/℃
Temperature Coefficient of ISC	+0.036%/℃
Solar cell	Mono156*156mm
No.of cells	36 (4×9)
Dimensions	1480mm673mm30mm
Weight	11kg
Front Glass	3.2mm tempered glass
Frame	Anodized aluminium alloy
Junction Box	PV--YH0906/PV-JB002
Connector	Plug and socket
Output Cables	PV 4.0mm², 0.9m
1*20’	490pcs
1*40’	1050pcs
1*40HQ	1260pcs
