JAYUAN Mono Solar Panel 500w

JAYUAN Mono solar panel 500w is composed of mono solar cells. The JAYUAN Mono solar panel 500w has a nice efficiency and don't require a much bigger size panel to get higher efficiency. The photoelectric conversion efficiency of a mono solar cell is about 18%, while the highest reaches 24%. The manufacturing cost of mono solar panel 500w is higher, for its long service life and ordered arrangement of the insider atoms. JAYUAN Mono solar panel 500w normally be used in personal residential roof and some small consumer goods.

​Electrical Characteristics Of JAYUAN Mono Solar Panel 500w

Maximum Power at STC(Pmax)

500W

Optimum Operating Voltage (Vmp)

54.16V

Optimum Operating Current (Imp)

9.24A

Open-Circuit Voltage (Voc)

66.49V

Short-Circuit Current (Isc)

9.77A

Solar Cell Efficiency (%)

20.27

Solar Module Efficiency (%)

18.07

Operating Temperature

-40 to 85℃

Maximum System Voltage

DC1000

Maximum Series Fuse Rating

15A

Power Tolerance

0~+3%

STC: Irradiance 1000W/㎡, Modules Temperature 25℃, AM=1.5


Temperature Coefficient And Mechanical Characteristics Of JAYUAN Mono Solar Panel 500w

Nominal Operating Cell Temperature (NOCT)

47℃+/-2℃

Temperature Coefficient of Pmax

-0.47%/℃

Temperature Coefficient of VOC

-0.346%/℃

Temperature Coefficient of ISC

+0.036%/℃

Solar cell

Mono156.75*156.75mm

No.of cells

104 (8×13)

Dimensions

2115mm*1380mm*45mm

Weight

35kg

Front Glass

3.2mm tempered glass

Frame

Anodized aluminium alloy

Junction Box

PV--YH0906/PV-JB002

Connector

Plug and socket

Output Cables

PV 4.0mm², 0.9m

1*20’

/

1*40’

/

1*40HQ

/


IV-Curves Of JAYUAN Mono Solar Panel 500w

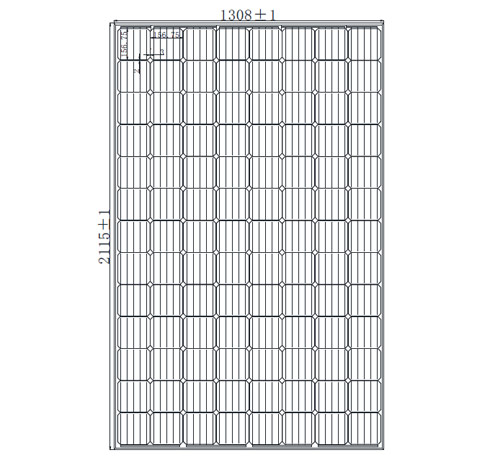

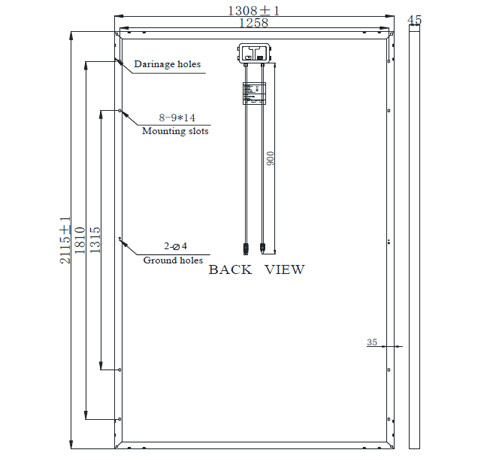

Engineering Drawings Of JAYUAN Mono Solar Panel 500w

  • Engineering Drawings Of JAYUAN Mono Solar Panel 500w
  • Engineering Drawings Of JAYUAN Mono Solar Panel 500w
