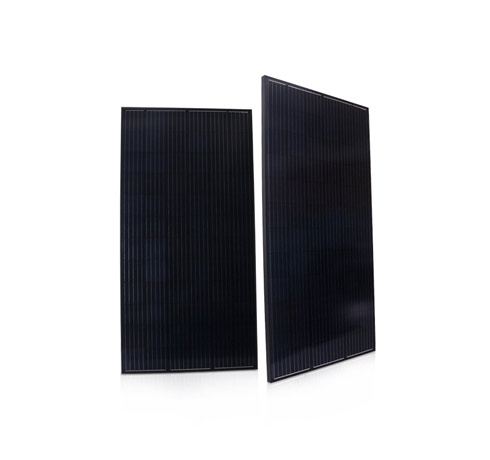

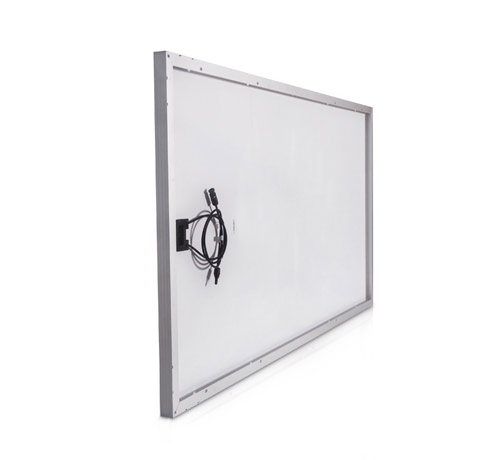

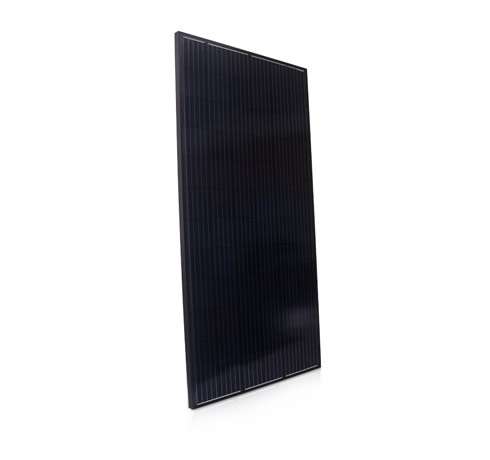

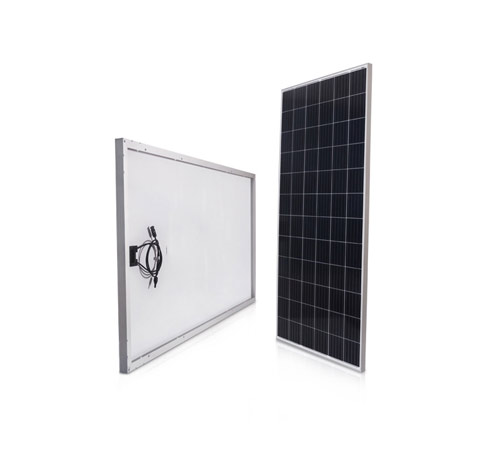

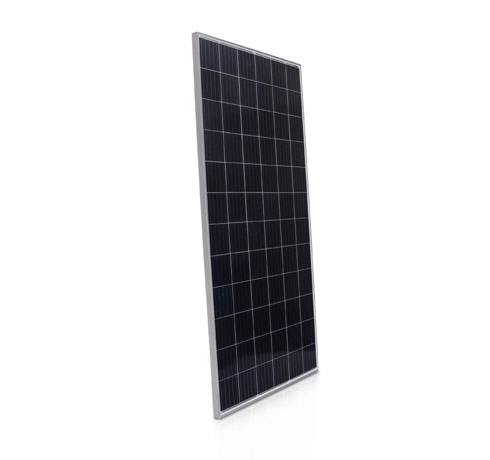

JAYUAN Poly Solar Panel 340w

JAYUAN Poly solar panel 340w is composed of 72 solar cells. JAYUAN Poly solar panel 340w is made of high purity polysilicon. For the large areas and off grids often polytype is preferred due to the lower cost of the product. JAYUAN Poly solar panel 340w is customized and selected based on the requirement of the power which need to be generated. Several panels can be combined to generate more power as required. Which require to be connected with a suitable system and require a suitable environment to work more efficiently.

Free Quote PDF Download

Electrical Characteristics
Mechanical Characteristics

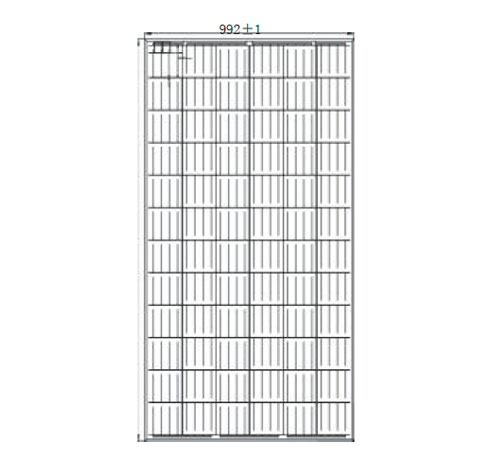

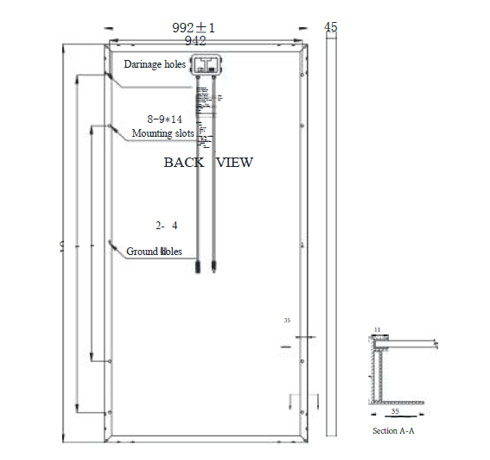

Engineering Drawings

Electrical Characteristics Of JAYUAN Poly Solar Panel 340w

Maximum Power at STC(Pmax)	340W
Optimum Operating Voltage (Vmp)	37.84V
Optimum Operating Current (Imp)	8.95A
Open-Circuit Voltage (Voc)	44.95V
Short-Circuit Current (Isc)	9.75A
Solar Cell Efficiency (%)	19.41
Solar Module Efficiency (%)	17.52
Operating Temperature	-40 to 85℃
Maximum System Voltage	DC1000
Maximum Series Fuse Rating	15A
Power Tolerance	0~+3%
STC: Irradiance 1000W/㎡, Modules Temperature 25℃, AM=1.5

Temperature Coefficient And Mechanical Characteristics Of JAYUAN Poly Solar Panel 340w

Nominal Operating Cell Temperature (NOCT)	47℃+/-2℃
Temperature Coefficient of Pmax	-0.47%/℃
Temperature Coefficient of VOC	-0.346%/℃
Temperature Coefficient of ISC	+0.036%/℃
Solar cell	Poly156*156mm
No.of cells	72 (6×12)
Dimensions	1956mm992mm40mm
Weight	23kg
Front Glass	3.2mm tempered glass
Frame	Anodized aluminium alloy
Junction Box	PV--YH0906/PV-JB002
Connector	Plug and socket
Output Cables	PV 4.0mm², 0.9m
1*20’	250pcs
1*40’	514pcs
1*40HQ	580pcs
