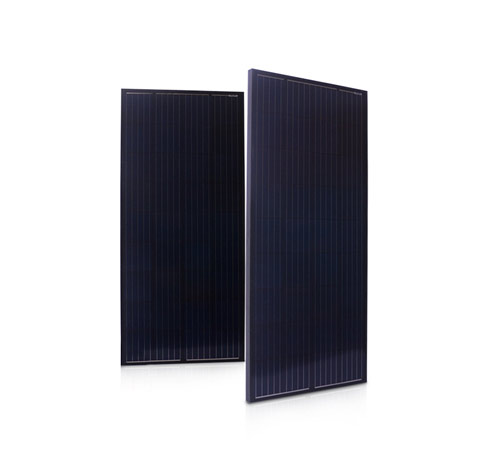

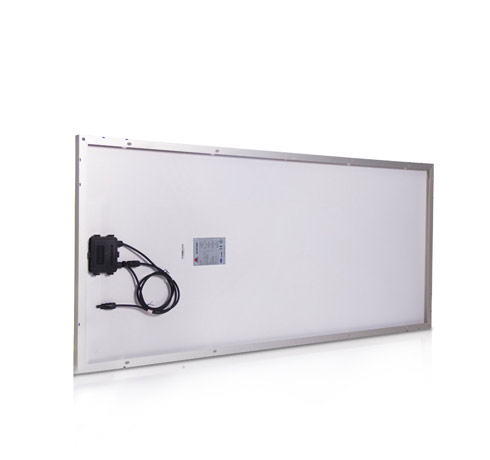

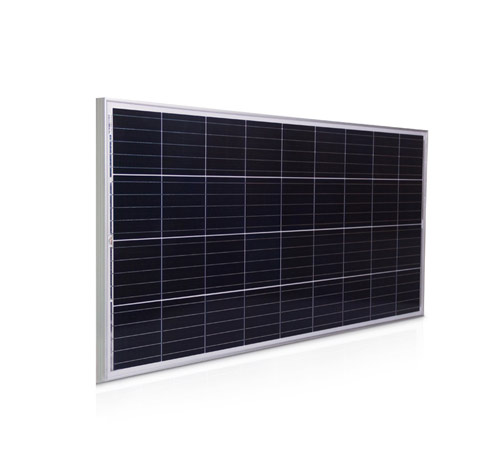

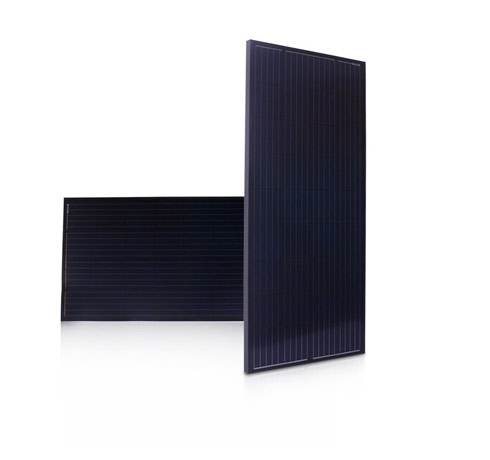

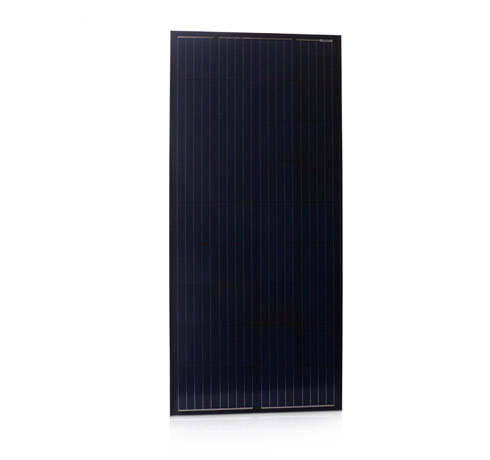

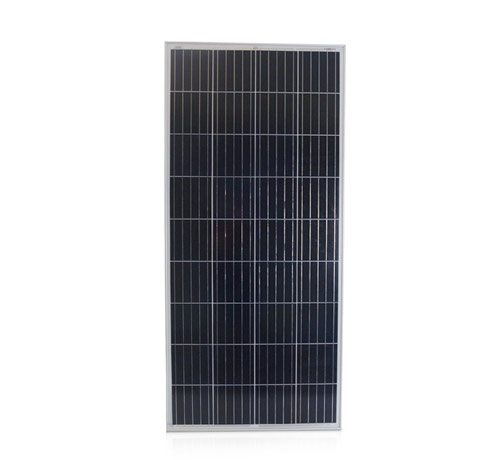

JAYUAN Poly Solar Panel 180w

JAYUAN Poly solar panel 180w is composed of 36 solar cells made of high purity polysilicon. The efficiency rate is in the 18% ups and downs. Polytype has a lower cost of production, it well performed as groups at some middle-large size project like commercial hotel and utility. The appearance has a pattern of snow crystals on a snowflake sheet, and the colour is light blue.

Free Quote PDF Download

Electrical Characteristics
Mechanical Characteristics
IV-Curves

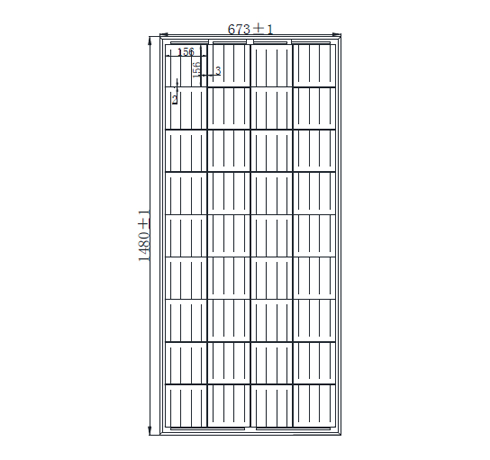

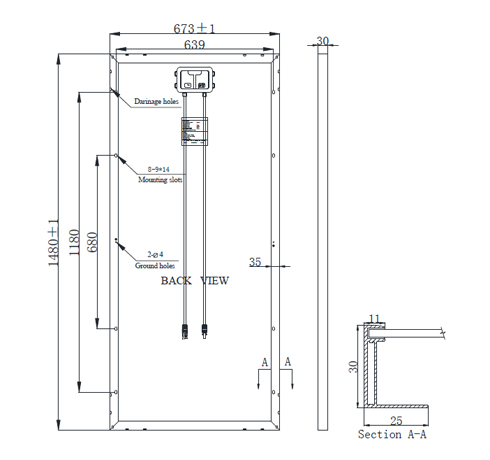

Engineering Drawings

Electrical Characteristics Of Poly Solar Panel 180w

Maximum Power at STC(Pmax)	160W
Optimum Operating Voltage (Vmp)	18.27V
Optimum Operating Current (Imp)	8.81A
Open-Circuit Voltage (Voc)	22.14V
Short-Circuit Current (Isc)	9.52A
Solar Cell Efficiency (%)	18.6
Solar Module Efficiency (%)	16.5
Operating Temperature	-40 to 85℃
Maximum System Voltage	DC1000
Maximum Series Fuse Rating	15A
Power Tolerance	0~+3%
STC: Irradiance 1000W/㎡, Modules Temperature 25℃, AM=1.5

Temperature Coefficient And Mechanical Characteristics Of JAYUAN Poly Solar Panel 180w

Nominal Operating Cell Temperature (NOCT)	47℃+/-2℃
Temperature Coefficient of Pmax	-0.47%/℃
Temperature Coefficient of VOC	-0.346%/℃
Temperature Coefficient of ISC	+0.036%/℃
Solar cell	Poly156*156mm
No.of cells	36 (4×9)
Dimensions	1480mm673mm30mm
Weight	11kg
Front Glass	3.2mm tempered glass
Frame	Anodized aluminium alloy
Junction Box	PV--YH0906/PV-JB002
Connector	Plug and socket
Output Cables	PV 4.0mm², 0.9m
1*20’	490pcs
1*40’	1050pcs
1*40HQ	1260pcs
